Brake pipe - from 250 to 300 cm
Brake line remanufactured on request, only in copper diameter 6.35 mm. Provide model (length and 2 original tips)Shipping after receipt of your model.
€83.64 TTC
(69,70 € HT)
(69,70 € HT)

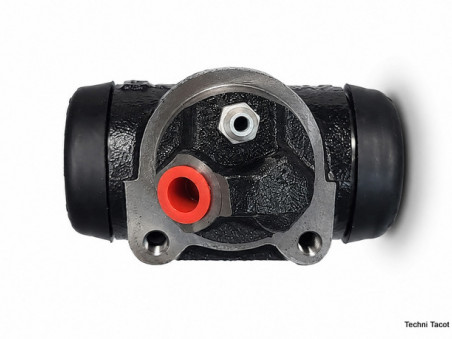

Rear brake cylinder 19mm - 3/8 Panhard 24 - 07/1964 to end
Rear wheel cylinder 19mm - Panhard 24 équipé frein à tambours - 07/1964 à fin de série
€69.12 TTC
(57,60 € HT)
(57,60 € HT)
Brake pipe - from 300 to 350 cm
Brake line remanufactured on request, only in copper diameter 6.35 mm. Provide model (length and 2 original tips)Shipping after receipt of your model.
€90.84 TTC
(75,70 € HT)
(75,70 € HT)

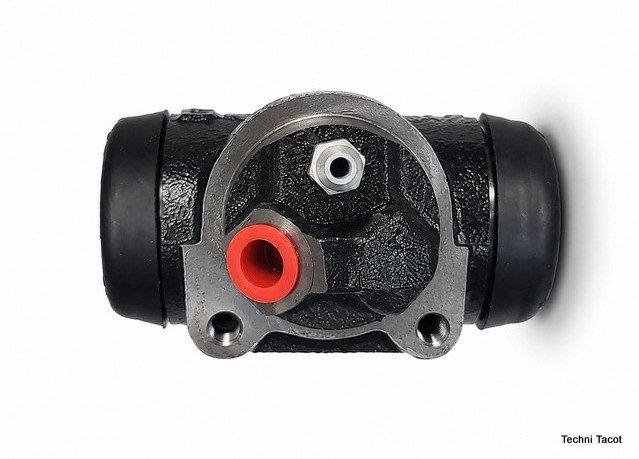

FRONT LEFT 28.5mm brake cylinder - Panhard PL 17 - 60 a 62
Front wheel cylinder L PL17 from 1960 to March 62 - d 28.57 mm. Entry 3/8 - Left side mounting. Length 72 mm - inside liquid passage = 8.5 mm
€81.60 TTC
(68,00 € HT)
(68,00 € HT)
Silicone brake fluid DOT 5 - 1L
" DOT 5 100% silicone brake fluid - 1L can - Purple color - Do not mix with other types of brake fluids. The installation must be rinsed before changing the type of liquid. Photo not contractual. "
€53.95 TTC
(44,96 € HT)
(44,96 € HT)
1/2 female 20 UNF connection on 8 mm tube (metal brake jar)
Metal tank foot nut (female 1/2 and d 8mm)
€11.10 TTC
(9,25 € HT)
(9,25 € HT)
Panhard PL 17 rear brake hose 236 mm
Rear brake hose PL 17 from 1960 to end of series - long 236 mm
€31.20 TTC
(26,00 € HT)
(26,00 € HT)
Master cylinder Panhard PL 17 and 24
Master cylinder for Panhard Pl 17 and 24 - diam 22 mm. French made
€91.20 TTC
(76,00 € HT)
(76,00 € HT)
Male thread brake reservoir
Brake fluid reservoir. Supplied with bracket, plug and 3/4 male connector 16 threads / p. External thread diameter = 18.5 mm. Delivered without caliper (fixing by the thread on the master cylinder). Lockeed and silicone compatible
€42.00 TTC
(35,00 € HT)
(35,00 € HT)
Rubber teat end for brake reservoir
" Flexible connection for brake reservoir. (100% rubber compatible with lockheed and silicone) Must be fitted with the metal insert to prevent tearing and accidental emptying of the liquid reservoir. "
€11.40 TTC
(9,50 € HT)
(9,50 € HT)
FRONT LEFT 28.5mm brake cylinder - Panhard PL 17 - Record mounting - 04/62 and fin
Front wheel cylinder L PL 17 - Record mounting - 04/62 and fine - d 28.57 mm. Left mounting.64 mm long - inside liquid passage = 10 mm
€66.00 TTC
(55,00 € HT)
(55,00 € HT)
Front brake hose 470 mm male 3/8 - Panhard PL 17
Front brake hose PL 17 from 1960 to end of series. 3/8 Male Thread (9.5mm) - length 470 mm
€31.20 TTC
(26,00 € HT)
(26,00 € HT)
Rear brake cylinder 19mm - Panhard PL 17 all models - from 60 to late
Rear left or right wheel cylinder PL17 Sedan from 60 to end of series - d 19 mm.
€64.80 TTC
(54,00 € HT)
(54,00 € HT)
