1/2 female 20 UNF connection on 8 mm tube (metal brake jar)

Metal tank foot nut (female 1/2 and d 8mm)

3/8 - 24 f copper pipe fitting

Rigid brake line nut. 3/8 x 24 threads / inch. Tube Ø 4.75 mm

7/16 female connection on 6.35 mm tube

7/16 connection on 6.35 mm tube

Adapter connection 7/16 male - 1/2 female

Adaptateur freinage mâle 7/16 (envion 11mm)femelle 11/16 pour recevoir gros flexible (17mm mâle

Adapter connection 7/16 male - 11/16 female

Adaptateur freinage  mâle 7/16 (envion 11mm) femelle 11/16 pour recevoir gros flexible (17mm mâle

Adapter connection 7/16 male - 3/8 female

Adaptateur freinage  mâle 7/16 (envion 11mm) femelle 3/8

Adapter connection 7/16 UNF female - 1/2 UNF male

Adapter connection 1/2 UNF male - 7/16 UNF female

Adapter fitting 1/2 UNF Male - 1/2 UNF female with internal bicone

Adapter fitting 1/2 UNF Male - 1/2 UNF female with internal bicone

Adapter fitting 3/8 UNF Male - 10x100 female

Adapter fitting 3/8 UNF Male - 10x100 female

Adapter fitting 7/16 Male - 7/16 female outgoing cone

Adapter fitting 7/16 Male - 7/16 female outgoing cone

Brake line - from 0 to 50 cm

Brake line remanufactured on demand only in copper diameter 6.35 mm. Small model, length less than 50 cm. Provide model (length and 2 original tips) Shipping after receipt of your model.

Brake line - from 100 to 150 cm

" Brake line remanufactured on request, only in copper diameter 6.35 mm. . Provide model (length and 2 original end caps) Shipment after receipt of your model. "

Brake line - from 150 to 200 cm

Brake line re-manufactured on request, only in copper diameter 6.35 mm. Provide model (length and 2 original end pieces)Shipping after receiving your model.

Brake line - from 200 to 250 cm

Brake line remanufactured on request, only in copper diameter 6.35 mm. Provide model (length and 2 original tips)Shipping after receipt of your model.

Brake line - from 51 to 99 cm

Brake line remanufactured on request, only in copper diameter 6.35 mm. Large model, length from 50 cm, max 2m. Provide model (length and 2 original tips)Shipping after receiving your model.

Brake pipe - from 250 to 300 cm

Brake line remanufactured on request, only in copper diameter 6.35 mm. Provide model (length and 2 original tips)Shipping after receipt of your model.

Brake pipe - from 300 to 350 cm

Brake line remanufactured on request, only in copper diameter 6.35 mm. Provide model (length and 2 original tips)Shipping after receipt of your model.

Brake switch - STOP - spring-loaded

Mechanical brake switch. STOP light function. To be fixed on bodywork or chassis.

Copper gasket 10 x 18

Copper gasket 18x10 mm thickness 1mm

€2.16 TTC
(1,80 € HT)

Copper gasket 10.5 x 20

Copper gasket 10.5 x 20 thickness 1mm

€1.80 TTC
(1,50 € HT)

Copper gasket 11.50 x 20

Copper gasket 20x11.50 mm thickness 1mm

€1.80 TTC
(1,50 € HT)

Copper gasket 12 x 18 mm

Copper gasket 12 x18 x  1.5mm thick

€1.80 TTC
(1,50 € HT)

Copper gasket 13.1 x 17

Copper gasket 13.1 x 17 mm thickness 1mm

€1.80 TTC
(1,50 € HT)

Copper gasket 13.1 x 18

Copper gasket 13.1 x 18 mm thickness 1mm

€1.92 TTC
(1,60 € HT)

Copper gasket 13.5x20.5

Copper gasket 13.50 x 20.50 th 1mm

€1.85 TTC
(1,54 € HT)

Copper gasket 15.3 x 21

Copper gasket 15.30 x 21.00 th 1mm

€1.80 TTC
(1,50 € HT)

Copper gasket 16 x 21

Copper gasket 16 x 21 1.5mm thick

€1.80 TTC
(1,50 € HT)

Copper gasket 19 x 24

Copper gasket 24x19 mm thickness 1mm

€1.80 TTC
(1,50 € HT)

Copper pipe fitting 7/16 - ext thread 11mm

Rigid brake line nut. 7/16 or about 11 mm measured on the external thread and Ø hole for the tube = 6.35mm

Copper seal 10.2 x 13.5

Copper gasket 10.2 x 13.5 mm thickness 1mm

€1.80 TTC
(1,50 € HT)

Dot 4 brake fluid

Dot 4 brake fluid - 500ml can. Non contractual photo

Ecrou

Front brake hose 470 mm male 3/8 - Panhard 24 - 07/1964 à fin

Front brake hose Panhard 24 - from July 19654 to the end. 3/8 Male Thread (9.5mm) - length 470 mm

Male connector 12x100 on 6.35 mm pipe

Male connector 12x100 on 6.35 mm pipe

Male thread brake reservoir

Brake fluid reservoir. Supplied with bracket, plug and 3/4 male connector 16 threads / p. External thread diameter = 18.5 mm. Delivered without caliper (fixing by the thread on the master cylinder). Lockeed and silicone compatible

Master cylinder Panhard PL 17 and 24

Master cylinder for Panhard Pl 17 and 24 - diam 22 mm. French made

€91.20 TTC
(76,00 € HT)

Metal insert tip for jar

Metal fitting to be fitted with the brake reservoir rubber to prevent the tearing and accidental draining of the brake fluid reservoir.

Pair of front brake cylinders 28.5mm - Panhard 24 - 07/1964 to the endnch nov 57 a end

2 x front wheel cylinder left and right - d 28.57 mm. 3/8 entry Left side mounting. Length 72 mm - inside liquid passage = 8.5 mm. Assembly:

€168.00 TTC
(140,00 € HT)

Panhard 24 - rear brake hose 236 mm

Rear brake hose - Panhard 24 from 1960 to end of series - long 236 mm

Pipe Ø 8 mm from reservoir to master cylinder - 1 m

Brake line remanufactured upon request, exclusively in 8 mm diameter copper.Photo not contractually binding. Supplied WITHOUT fittings - you can order the one you need from our store (for the master cylinder side). The other end is bare (inlet on ...

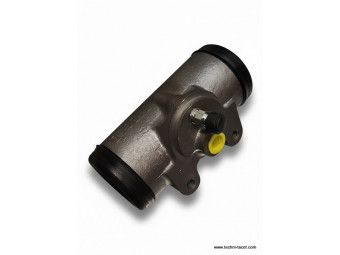

Rear brake cylinder 19mm - 3/8 Panhard 24 - 07/1964 to end

Rear wheel cylinder 19mm  - Panhard 24 équipé frein à tambours - 07/1964 à fin de série

€69.12 TTC
(57,60 € HT)

Rear brake cylinder 19mm - Panhard 24 - 07/1964 to end

Rear wheel cylinder 19mm  - Panhard 24 équipé frein à tambours - 07/1964 à fin de série

€64.80 TTC
(54,00 € HT)

Rubber teat end for brake reservoir

" Flexible connection for brake reservoir. (100% rubber compatible with lockheed and silicone) Must be fitted with the metal insert to prevent tearing and accidental emptying of the liquid reservoir. "

Silicone brake fluid DOT 5 - 1L

" DOT 5 100% silicone brake fluid - 1L can - Purple color - Do not mix with other types of brake fluids. The installation must be rinsed before changing the type of liquid. Photo not contractual. "

Special brake grease tube - 5g

Tube of special braking grease (5gr), Lockheed DOT and silicone compatible, protects steel cylinder and piston parts, helps them slide, compatible with rubber parts.

Special brake grease tube - Plastilub ATE - 75 ml

Tube of special braking grease (75 ml). ATE's Plastilube is used to lubricate the guide faces on calipers and brake linings and to protect them against corrosion.Note: The friction surfaces of the brake pads must not be coated with ATE Plastilube!
