1/2 female 20 UNF connection on 8 mm tube (metal brake jar)

Metal tank foot nut (female 1/2 and d 8mm)

3/8 - 24 f copper pipe fitting

Rigid brake line nut. 3/8 x 24 threads / inch. Tube Ø 4.75 mm

7/16 female connection on 6.35 mm tube

7/16 connection on 6.35 mm tube

Adapter connection 7/16 male - 1/2 female

Adaptateur freinage mâle 7/16 (envion 11mm)femelle 11/16 pour recevoir gros flexible (17mm mâle

Adapter connection 7/16 male - 11/16 female

Adaptateur freinage  mâle 7/16 (envion 11mm) femelle 11/16 pour recevoir gros flexible (17mm mâle

Adapter connection 7/16 male - 3/8 female

Adaptateur freinage  mâle 7/16 (envion 11mm) femelle 3/8

Adapter connection 7/16 UNF female - 1/2 UNF male

Adapter connection 1/2 UNF male - 7/16 UNF female

Adapter fitting 1/2 UNF Male - 1/2 UNF female with internal bicone

Adapter fitting 1/2 UNF Male - 1/2 UNF female with internal bicone

Adapter fitting 3/8 UNF Male - 10x100 female

Adapter fitting 3/8 UNF Male - 10x100 female

Adapter fitting 7/16 Male - 7/16 female outgoing cone

Adapter fitting 7/16 Male - 7/16 female outgoing cone

Brake hose 412 mm rear G Panhard PL 17

Rear brake hose G Panhard PL 17 - from April 1962 to the end (Record fitting) - length 412 mm

Brake line - from 0 to 50 cm

Brake line remanufactured on demand only in copper diameter 6.35 mm. Small model, length less than 50 cm. Provide model (length and 2 original tips) Shipping after receipt of your model.

Brake line - from 100 to 150 cm

" Brake line remanufactured on request, only in copper diameter 6.35 mm. . Provide model (length and 2 original end caps) Shipment after receipt of your model. "

Brake line - from 150 to 200 cm

Brake line re-manufactured on request, only in copper diameter 6.35 mm. Provide model (length and 2 original end pieces)Shipping after receiving your model.

Brake line - from 200 to 250 cm

Brake line remanufactured on request, only in copper diameter 6.35 mm. Provide model (length and 2 original tips)Shipping after receipt of your model.

Brake line - from 51 to 99 cm

Brake line remanufactured on request, only in copper diameter 6.35 mm. Large model, length from 50 cm, max 2m. Provide model (length and 2 original tips)Shipping after receiving your model.

Brake pipe - from 250 to 300 cm

Brake line remanufactured on request, only in copper diameter 6.35 mm. Provide model (length and 2 original tips)Shipping after receipt of your model.

Brake pipe - from 300 to 350 cm

Brake line remanufactured on request, only in copper diameter 6.35 mm. Provide model (length and 2 original tips)Shipping after receipt of your model.

Canalisation Ø 8 mm bocal vers maitre cylindre - 1 m

Canalisation de frein refabriquée à la demande, uniquement en cuivre diamètre 8 mm

Copper gasket 10 x 18

Copper gasket 18x10 mm thickness 1mm

€1.92 TTC
(1,60 € HT)

Copper gasket 10.5 x 20

Copper gasket 10.5 x 20 thickness 1mm

€1.80 TTC
(1,50 € HT)

Copper gasket 11.50 x 20

Copper gasket 20x11.50 mm thickness 1mm

€1.80 TTC
(1,50 € HT)

Copper gasket 12 x 18 mm

Copper gasket 12 x18 x  1.5mm thick

€1.80 TTC
(1,50 € HT)

Copper gasket 13.1 x 17

Copper gasket 13.1 x 17 mm thickness 1mm

€1.80 TTC
(1,50 € HT)

Copper gasket 13.1 x 18

Copper gasket 13.1 x 18 mm thickness 1mm

€1.92 TTC
(1,60 € HT)

Copper gasket 13.5x20.5

Copper gasket 13.50 x 20.50 th 1mm

€1.80 TTC
(1,50 € HT)

Copper gasket 15.3 x 21

Copper gasket 15.30 x 21.00 th 1mm

€1.80 TTC
(1,50 € HT)

Copper gasket 16 x 21

Copper gasket 16 x 21 1.5mm thick

€1.80 TTC
(1,50 € HT)

Copper gasket 19 x 24

Copper gasket 24x19 mm thickness 1mm

€1.80 TTC
(1,50 € HT)

Copper pipe fitting 7/16 - ext thread 11mm

Rigid brake line nut. 7/16 or about 11 mm measured on the external thread and Ø hole for the tube = 6.35mm

Copper seal 10.2 x 13.5

Copper gasket 10.2 x 13.5 mm thickness 1mm

€1.80 TTC
(1,50 € HT)

Dot 4 brake fluid

Dot 4 brake fluid - 500ml can. Non contractual photo

Ecrou

Front brake hose 470 mm male 3/8 - Panhard PL 17

Front brake hose PL 17 from 1960 to end of series. 3/8 Male Thread (9.5mm) - length 470 mm

Front brake hose 470 mm male 7/16 - Panhard PL 17

Front brake hose PL17 from 1960 to end of series. Male thread 7/16 (11.1 mm) - length 470 mm

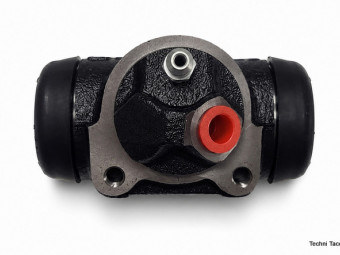

FRONT LEFT 28.5mm brake cylinder - Panhard PL 17 - 60 a 62

Front wheel cylinder L PL17 from 1960 to March 62 - d 28.57 mm. Entry 3/8 - Left side mounting. Length 72 mm - inside liquid passage = 8.5 mm

€81.60 TTC
(68,00 € HT)

FRONT LEFT 28.5mm brake cylinder - Panhard PL 17 - Record mounting - 04/62 and fin

Front wheel cylinder L PL 17 - Record mounting - 04/62 and fine - d 28.57 mm. Left mounting.64 mm long - inside liquid passage = 10 mm

€66.00 TTC
(55,00 € HT)

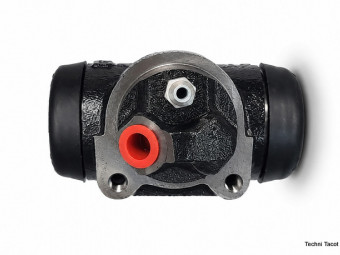

FRONT RIGHT 28.5mm brake cylinder - Panhard PL 17 - 60 to 62

Front wheel cylinder L PL17 from 1960 to March 62 - d 28.57 mm. Entry 3/8 - Right mounting. Length 72 mm - inside liquid passage = 8.5 mm

€81.60 TTC
(68,00 € HT)

FRONT RIGHT 28.5mm brake cylinder- Panhard PL 17 - Record mounting - 04/62 and fin

Front wheel cylinder L PL 17 - Record mounting - 04/62 and fine - d 28.57 mm. RIGHT Mount64 mm long - inside liquid passage = 10 mm

€66.00 TTC
(55,00 € HT)

Male connector 12x100 on 6.35 mm pipe

Male connector 12x100 on 6.35 mm pipe

Male thread brake reservoir

Brake fluid reservoir. Supplied with bracket, plug and 3/4 male connector 16 threads / p. External thread diameter = 18.5 mm. Delivered without caliper (fixing by the thread on the master cylinder). Lockeed and silicone compatible

Master cylinder Panhard PL 17 and 24

Master cylinder for Panhard Pl 17 and 24 - diam 22 mm. French made

€88.61 TTC
(73,84 € HT)

Master cylinder Panhard PL17 assembly Record 04/1962 at the end - DOT

Complete master cylinder for PL17 sedan, utility, Z1 from 04/1962 for a Record type assembly. Includes:For DOT liquid use. Otherwise choose the reference for the 100% SILICONE liquid.- 22mm master cylinder- 3-way 7/16 connection- stop switch- 2 x ...

€142.02 TTC
(118,35 € HT)

Master cylinder Panhard PL17 assembly Record 04/1962 at the end - SILICONE

Complete master cylinder for PL17 sedan, utility, Z1 from 04/1962 for a Record type assembly. Includes:For use 100% SILICONE. Otherwise choose the reference for the DOT fluid.- 22mm master cylinder- 3-way 7/16 connection- stop switch- 2 x copper ...

€147.72 TTC
(123,10 € HT)

Metal insert tip for jar

Metal fitting to be fitted with the brake reservoir rubber to prevent the tearing and accidental draining of the brake fluid reservoir.

Panhard PL 17 rear brake hose 236 mm

Rear brake hose PL 17 from 1960 to end of series - long 236 mm

Rear brake cylinder 19mm - Panhard PL 17 all models - from 60 to late

Rear left or right wheel cylinder PL17 Sedan from 60 to end of series - d 19 mm.

€63.96 TTC
(53,30 € HT)

Rear brake cylinder 19mm - 3/8 Panhard 24 - 07/1964 to end

Rear wheel cylinder 19mm  - Panhard 24 équipé frein à tambours - 07/1964 à fin de série

€69.12 TTC
(57,60 € HT)

Rubber teat end for brake reservoir

" Flexible connection for brake reservoir. (100% rubber compatible with lockheed and silicone) Must be fitted with the metal insert to prevent tearing and accidental emptying of the liquid reservoir. "

Set of 4 relined brake shoes Panhard Dyna x86

Set of 4 relined brake shoes (front or rear) 195 mm x 30 mm in standard exchange for Panhard Dyna X86, Dyna Z, PL 17 and series 24Microblasting, varnish, industrial bonding of friction. Strong adhesion.Eliminates the problem of rivets that could ...

€117.60 TTC
(98,00 € HT)

Set of 4 relined REAR 30mm larg - brake shoes - Panhard

Set of 4 relined brake shoes (front or rear) 195 mm x 30 mm in standard exchange for Panhard Dyna X86, Dyna Z, PL 17 and series 24Microblasting, varnish, industrial bonding of friction. Strong adhesion.Eliminates the problem of rivets that could ...

€102.00 TTC
(85,00 € HT)

Set of 4 relined REAR brake shoes - Panhard

Set of 4 relined brake shoes (front or rear) 195 mm x 30 mm in standard exchange for Panhard Dyna X86, Dyna Z, PL 17 and series 24Microblasting, varnish, industrial bonding of friction. Strong adhesion.Eliminates the problem of rivets that could ...

€117.60 TTC
(98,00 € HT)

Silicone brake fluid DOT 5 - 1L

" DOT 5 100% silicone brake fluid - 1L can - Purple color - Do not mix with other types of brake fluids. The installation must be rinsed before changing the type of liquid. Photo not contractual. "

Special brake grease tube - 5g

Tube of special braking grease (5gr), Lockheed DOT and silicone compatible, protects steel cylinder and piston parts, helps them slide, compatible with rubber parts.

Special brake grease tube - Plastilub ATE - 75 ml

Tube of special braking grease (75 ml). ATE's Plastilube is used to lubricate the guide faces on calipers and brake linings and to protect them against corrosion.Note: The friction surfaces of the brake pads must not be coated with ATE Plastilube!
